WWII Underwater Defenses
of the Portsmouth Harbor Defense Command

Minefields of submerged (ground) and/or floating (buoyant) mines were "planted" in Portsmouth Harbor by the U.S. Army Corps of Engineers during the Spanish-American War, and by the U.S. Coast Artillery during both World Wars. Early mines were floating contact mines, and later models were submerged controlled mines, electrically fired from the mine casemates at either Fort Stark (1907 - 1920), Fort Constitution (1898 - 1905, 1920 - 1945) and Fort Foster (1942 - 1945). Minefield observation stations were located at Fort Stark (M' 1909 - 1921), Fort Constitution (M' 1921 - 1942) (M1 1942 - 1945), and Fort Foster (M" 1909 - 1942) (M2 1942 - 1945). The U.S. Navy took over harbor mining operations, as well as overall responsibility for harbor defense, from 1949 to 1980. The Navy "laid" both submerged and bouyant mines at different times.

digital scan courtesy of Jon Woolf

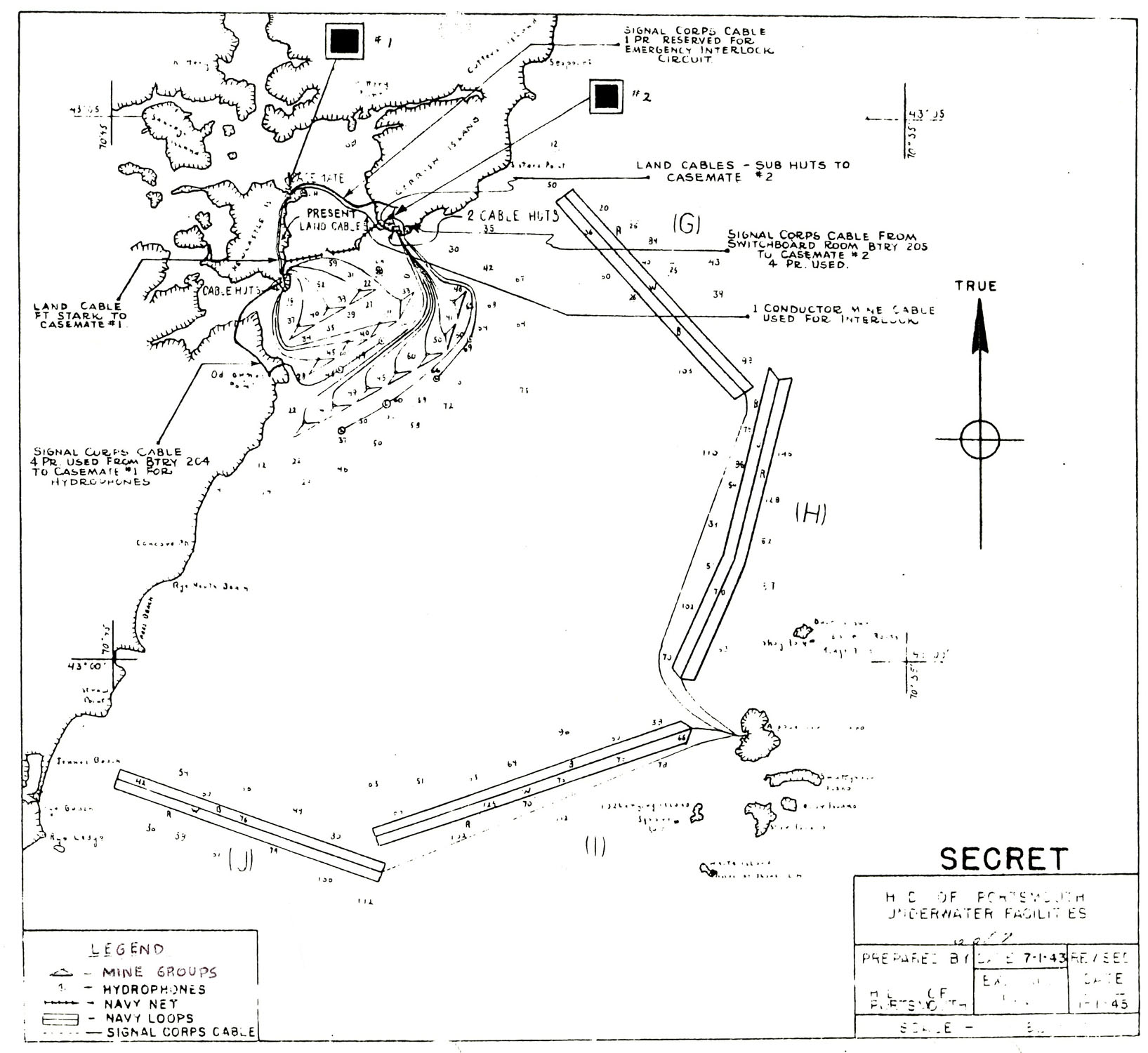

1945 Chart of the Underwater Defenses
click for larger image

Anti-submarine nets were also used in both World Wars, stretching from Fort Foster to Fort Stark. Anti-Motor Torpedo Boat defenses were emplaced between Fort Foster and Wood Island during WWII, where the anti-submarine nets could not be put in place. These were hidden obstructions built and placed to prevent enemy raiding boats from skimming over them at high tide. The remnants of the cribworks are still visible today.

Hydrophones and sono-buoys, controlled from Forts Stark and Foster, were used within the harbor minefield in World War II, and also after the war by the Navy to detect Soviet subs. Magnetic indicator loops, controlled from Appledore Island, were used to detect submerged enemy submarines trying to enter the harbor. The loops were deployed from Sisters' Point to the Isles of Shoals, and then back to Rye Ledge.

At least one or two armed U.S. Navy picket boats were present "on station" in the outer harbor at all times, patrolling back and forth between the Isles of Shoals and New Castle. When new submarines were launched from the Shipyard, the amount of protection by other ships naturally increased. Enemy spotting was also done by Navy airplanes and blimps operating out of Portland or Boston. (see also Fort Constitution history for a short history of mining operations in Portsmouth Harbor)

This station was built on top of Battery Farnsworth at Fort Constitution in 1942. It served the Mine Command (M1), and also briefly the Harbor Operations Command (HD OPS 2) before that station was moved to the HECP at Fort Stark. It is not accessible to the public.
(see also Fort Constitution photo gallery)
GPS M1 OP (OC2234) - N 43 04.220 W 070 42.749 (NAD 83)

The Mine Observation Tower behind Battery Bohlen at Fort Foster, built in 1942.
It served the Mine Command and Mine Gun Group Command (M2 and MG OPS 1). Now public restrooms. There is no access to the upper floor.
(see also Fort Foster photo gallery)
GPS MG Station (right) (OC2175) - N 43 04.062 W 070 41.509 (NAD 83)
GPS M2 Station (left) (OC2176) - N 43 04.062 W 070 41.506 (NAD 83)

A contact mine that was used in the harbor.

What appears to be the remains of an old wharf are in fact the remains of the cribworks for the WWII anti-motor torpedo boat defenses.
